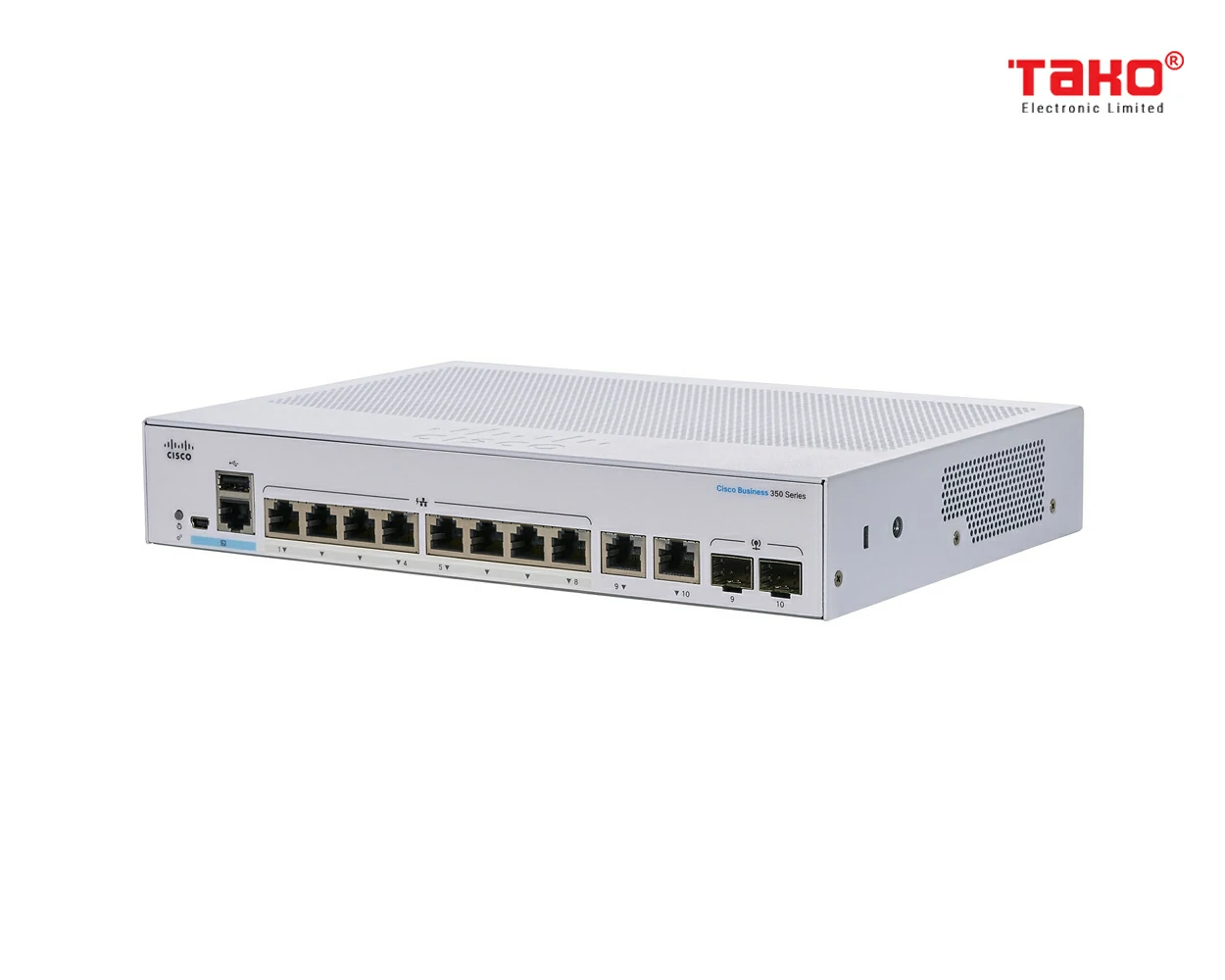

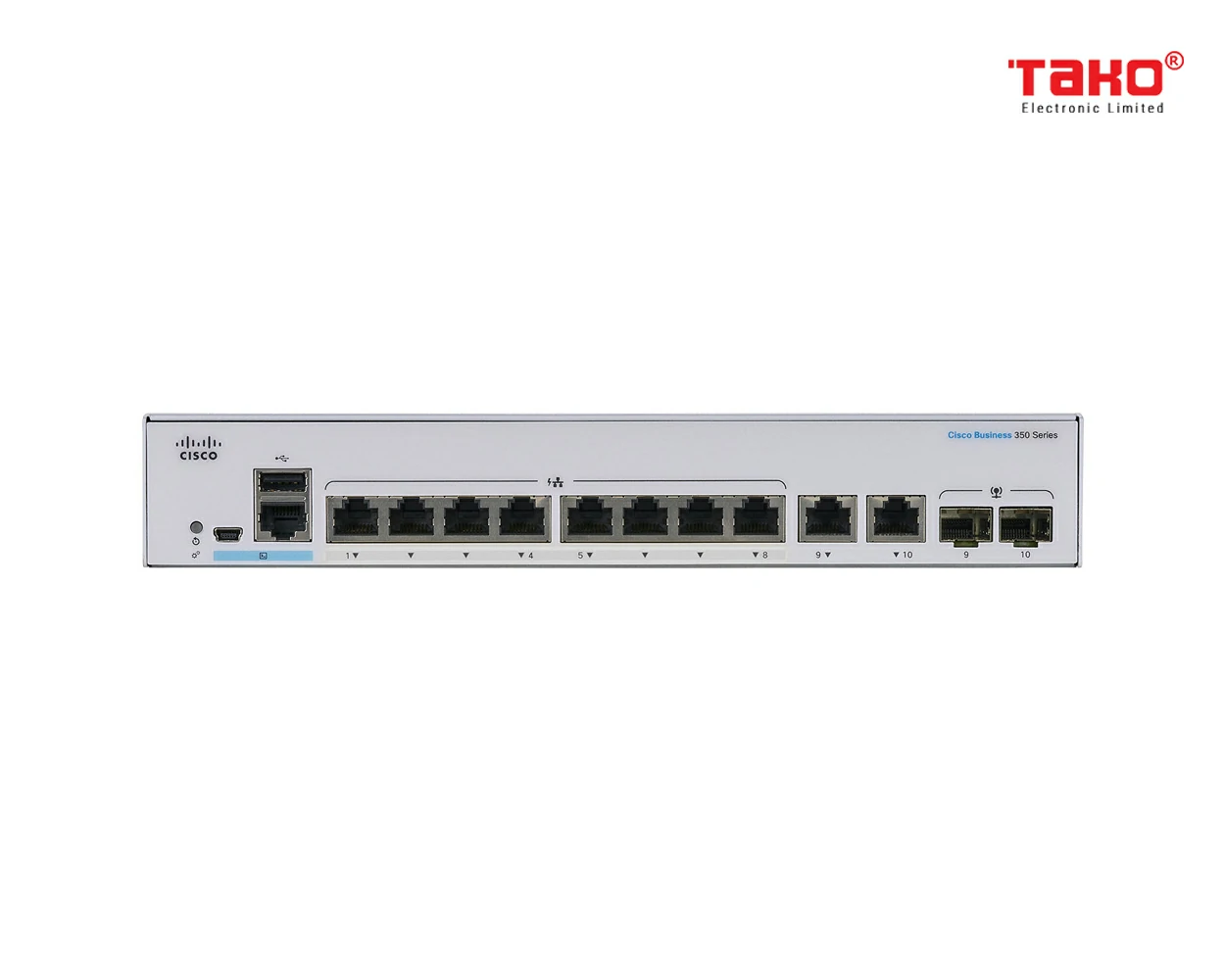

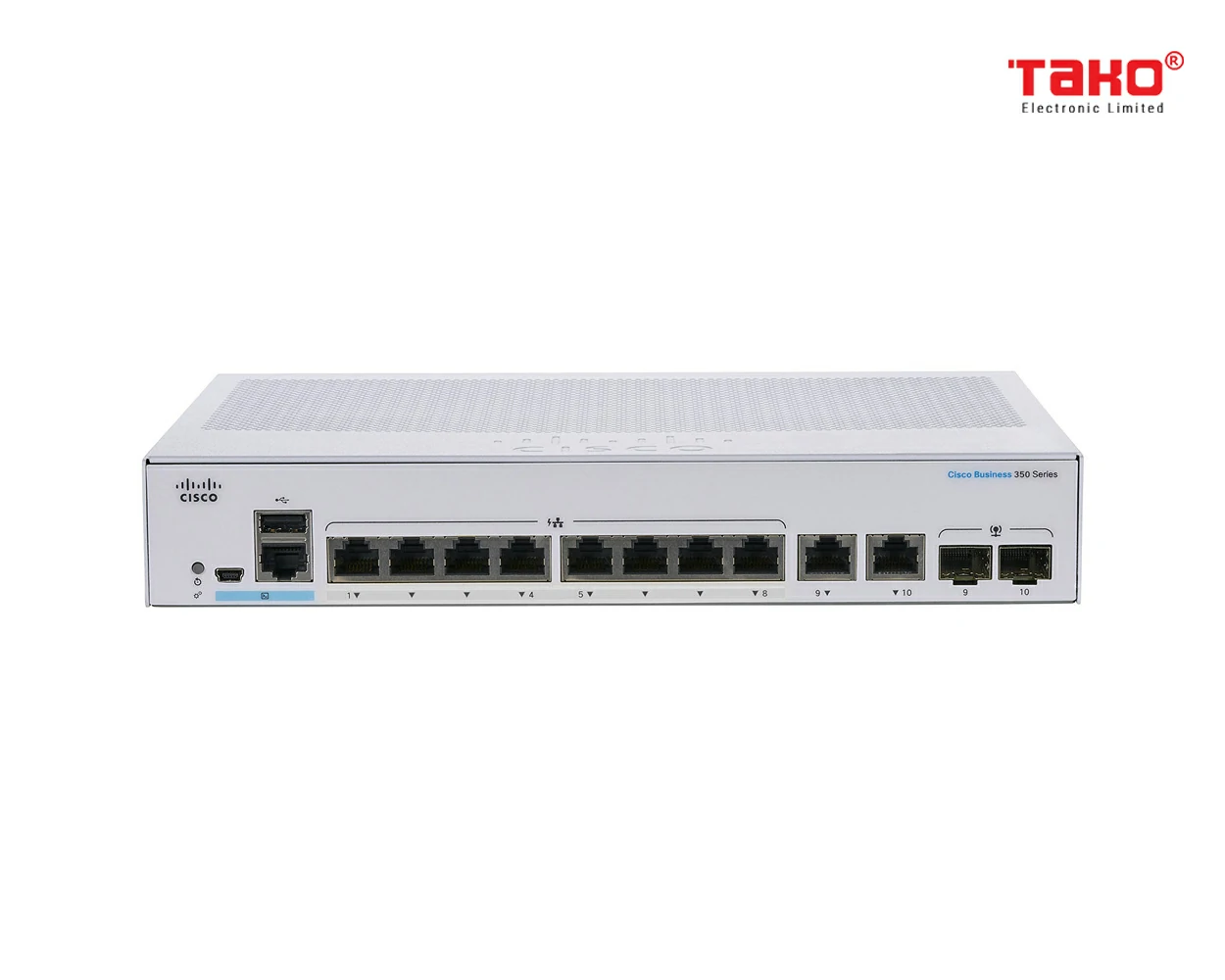

Cisco Business CBS350-8T-E-2G managed Switch L2/L3 08 Cổng Ethernet
- Mã sản phẩm: CBS350-8T-E-2G
- Xuất xứ: Trung Quốc
- Bảo hành: Không bảo hành
- Kho hàng: Đặt hàng
- Giao diện: 16 cổng 10/100/1000 Mbps phụ thuộc phương tiện tự động (MDI) và giao nhau MDI (MDI-X)
- Đạt tiêu chuẩn: UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B*
- Nhiệt độ hoạt động: 32° đến 104°F (0° đến 40°C)
- Green (hiệu quả năng lượng): Supports IEEE 802.3az on all copper Gigabit Ethernet portsHotline: 0888342020
-
CBS350: Switch quản lý cấp L3
NHIỀU NHU CẦU ĐƯỢC ĐÁP ỨNG
- Kết nối máy tính để bàn an toàn: Thiết bị chuyển mạch Cisco Business 350 có thể kết nối đơn giản và an toàn các nhân viên làm việc trong các văn phòng nhỏ với nhau và với tất cả các máy chủ, máy in và các thiết bị khác mà họ sử dụng. Khả năng kết nối đáng tin cậy, hiệu suất cao giúp tăng tốc độ truyền tệp và xử lý dữ liệu, cải thiện tính khả dụng của mạng và giúp nhân viên làm việc hiệu quả và kết nối.
- Truyền thông hợp nhất: Là một giải pháp mạng được quản lý, Cisco Business 350 Series cung cấp hiệu suất và thông tin xử lý lưu lượng nâng cao mà bạn cần để phát tất cả thông tin liên lạc và dữ liệu trên một mạng duy nhất.
- Khả năng kết nối với khách bảo mật cao: Thiết bị chuyển mạch Cisco Business 350 cho phép bạn mở rộng kết nối mạng bảo mật cao để khách có quyền truy cập bất kể vị trí hoặc cấu hình, trong khách sạn, phòng chờ hoặc khu vực khác mở cửa cho người dùng không làm việc. Các tính năng phân đoạn lưu lượng truy cập và bảo mật dễ cấu hình cho phép bạn cách ly lưu lượng truy cập quan trọng của công ty khỏi các dịch vụ khách và đảm bảo rằng mọi phiên khách vẫn hoàn toàn riêng tư.
-
Quản lý lưu lượng lớp 3 nâng cao: Cisco Business 350 Series kết hợp một bộ khả năng quản lý lưu lượng nâng cao hơn giúp các doanh nghiệp đang phát triển tổ chức mạng của họ hiệu quả hơn. Ví dụ: các thiết bị chuyển mạch này cung cấp định tuyến mạng LAN Lớp 3 tĩnh, cho phép bạn phân đoạn mạng của mình thành các nhóm làm việc và giao tiếp trên nhiều VLAN mà không ảnh hưởng đến hiệu suất ứng dụng.
DỄ TRIỂN KHAI VÀ ĐỘ TIN CẬY
- Các thiết bị chuyển mạch cũng hỗ trợ Textview, một giao diện dòng lệnh toàn diện (CLI) cho các đối tác thích tùy chọn quản trị này.
- Hỗ trợ Giao thức quản lý mạng đơn giản (SNMP) cho phép bạn định cấu hình và quản lý các thiết bị chuyển mạch và các thiết bị Cisco khác từ xa, từ trạm quản lý mạng, cải thiện quy trình làm việc CNTT và cấu hình hàng loạt.
- Cisco Business Dashboard được thiết kế để quản lý thiết bị chuyển mạch, bộ định tuyến và điểm truy cập không dây của Cisco Business. Cisco Business Dashboard giúp bạn dễ dàng đáp ứng các thách thức phổ biến trong việc triển khai và quản lý mạng doanh nghiệp, đồng thời tự động hóa việc triển khai, giám sát mạng và quản lý vòng đời. Thiết bị chuyển mạch Cisco Business 350 hỗ trợ đầu dò tích hợp cho Cisco Business Dashboard, loại bỏ nhu cầu cài đặt máy vật lý hoặc máy ảo tại chỗ.
CÁC TÍNH NĂNG CHÍNH:
- Chuyển mạch 8 cổng Ethernet Gigabit 10/100/1000 Mbps + 2 cổng combo 1 GbE/SFP
- Mô-đun SFP pris en charge: MGBSX1, MGBLX1, MGBLH1, MGBT1, GLC-SX-MMD, GLC-LH-SMD, GLC-BX-U, GLC-BX-D, GLC-TE
- Chuyển mạch được quản lý cấp 3 (giao diện web đơn giản hóa) hoặc quản lý tập trung (Bảng điều khiển doanh nghiệp của Cisco)
- Tổng công suất chuyển mạch: 20 Gbps
- IPv6 tương thích
- QoS, bảo mật cơ bản, VLAN, quản lý IPv6
- Tự động triển khai hệ thống thoại trên mạng (Auto Smartports)
- Định tuyến IP tĩnh (990 Routes, 4094 VLAN, 16K Mac)
- EEE (Energy Efficient Ethernet) - Công tắc xanh tiết kiệm năng lượng
- Nguồn điện bên ngoài
Feature
Description
Performance
Switching capacity
Model name
Forwarding rate in millions of packets per second (mpps; 64-byte packets)
Switching capacity in Gigabits per second (Gbps)
CBS220-8T-E-2G
14.88
20
CBS220-8P-E-2G
14.88
20
CBS220-8FP-E-2G
14.88
20
CBS220-16T-2G
26.78
36
CBS220-16P-2G
26.78
36
CBS220-24T-4G
41.66
56
CBS220-24P-4G
41.66
56
CBS220-24FP-4G
41.66
56
CBS220-48T-4G
74.38
104
CBS220-48P-4G
74.38
104
CBS220-24T-4X
95.23
128
CBS220-24P-4X
95.23
128
CBS220-24FP-4X
95.23
128
CBS220-48T-4X
130.94
176
CBS220-48P-4X
130.94
176
CBS220-48FP-4X
130.94
176
Layer 2 switching
MAC table
Up to 8,192 Media Access Control (MAC) addresses
Spanning Tree Protocol (STP)
Standard 802.1d Spanning Tree support, enabled by default
Fast convergence using 802.1w (Rapid Spanning Tree [RSTP])
Multiple Spanning Tree instances using 802.1s (MSTP)
16 instances are supported
Port grouping
Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)
● Up to 8 groups● Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregationLoad balance based on source and destination MAC address, or source and destination MAC/IP
VLAN
Support for up to 256 Virtual Local Area Networks (VLANs) simultaneously
Port-based and 802.1Q tag-based VLANs
Management VLAN
Guest VLAN
Auto voice VLAN
Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS
QinQ VLAN
VLANs transparently cross a service provider network while isolating traffic among customers
Generic VLAN Registration Protocol (GVRP) and Generic Attribute Registration Protocol (GARP)
Protocols for automatically propagating and configuring VLANs in a bridged domain
Head-of-Line (HOL) blocking
HOL blocking prevention
Jumbo frame
Frame sizes up to 9,216 supported
Loopback detection
Loopback detection provides protection against loops by transmitting loop protocol packets out of ports on which loop protection has been enabled. It operates independently of STP.
Automatic Media-Dependent Interface Crossover (MDIX)
Automatically adjusts transmit and receive pairs if an incorrect cable type (crossover or straight-through) is installed.
Security
ACLs
Drop or rate limit based on source and destination MAC, VLAN ID or IP address, protocol, port, Differentiated Services Code Point (DSCP)/IP precedence, Transmission Control Protocol (TCP)/ User Datagram Protocol (UDP) source and destination ports, 802.1p priority, Ethernet type, Internet Control Message Protocol (ICMP) packets, Internet Group Management Protocol (IGMP) packets, TCP flag
Support up to 512 rules
Port security
Creates the ability to lock source MAC addresses to ports; limits the number of learned MAC addresses
IEEE 802.1X (authenticator role)
802.1X: Remote Authentication Dial-in User Service (RADIUS) authentication; guest VLAN;
Single-host, multiple-host, and multisession mode
RADIUS, TACACS+
Supports RADIUS and Terminal Access Controller Access Control System (TACACS) authentication; switch functions as a client
MAC address filtering
Supported
Storm control
Broadcast, multicast, and unknown unicast
DoS protection
DOS attack prevention
STP Bridge Protocol Data Unit (BPDU) Guard
This security mechanism protects the network from invalid configurations. A port enabled for BPDU Guard is shut down if a BPDU message is received on that port.
Spanning Tree Loop Guard
This feature provides additional protection against Layer 2 forwarding loops (STP loops).
Secure Shell (SSH) Protocol
SSH is a secure replacement for Telnet traffic. SCP also uses SSH. SSH v1 and v2 are supported.
Secure Sockets Layer (SSL)
SSL support: Encrypts all HTTPS traffic, allowing highly secure access to the browser-based management GUI in the switch
QoS
Priority levels
8 hardware queues per port
Scheduling
Strict priority and Weighted Round-Robin (WRR) queue assignment based on DSCP and class of service (802.1p/CoS)
Class of service
Port-based; 802.1p VLAN priority-based; IPv4/v6 IP precedence, Type of Service (ToS), and DSCP-based; Differentiated Services (DiffServ); classification and re-marking ACLs, trusted QoS
Rate limiting
Ingress policer; egress shaping and rate control; per VLAN, per port, and flow-based
Congestion avoidance
A TCP congestion avoidance algorithm is required to reduce and prevent global TCP loss synchronization.
Multicast
Internet Group Management Protocol (IGMP) Versions 1, 2, and 3 Snooping
IGMP limits bandwidth-intensive multicast traffic to only the requesters; supports 256 multicast groups
IGMP querier
IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router
Standards
Standards
IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab
1000BASE-T Gigabit Ethernet, IEEE 802.3ad LACP, IEEE 802.3z Gigabit Ethernet, IEEE
802.3x Flow Control, IEEE 802.1D (STP, GARP, and GVRP), IEEE 802.1Q/p VLAN, IEEE
802.1w RSTP, IEEE 802.1s Multiple STP, IEEE 802.1X Port Access Authentication, IEEE
802.3af, IEEE 802.3at, RFC 768, Request for Comments (RFC) 783, RFC 791, RFC 792, RFC 793, RFC 813, RFC 879, RFC 896, RFC 826, RFC 854, RFC 855, RFC 856, RFC 858, RFC 894, RFC 919, RFC 922, RFC 920, RFC 950, RFC 1042, RFC 1071, RFC 1123, RFC 1141, RFC 1155, RFC 1157, RFC
1350, RFC 1533, RFC 1541, RFC 1624, RFC 1700, RFC 1867, RFC 2030, RFC 2616, RFC
2131, RFC 2132, RFC 3164, RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415, RFC
2576, RFC 4330, RFC 1213, RFC 1215, RFC 1286, RFC 1442, RFC 1451, RFC 1493, RFC
1573, RFC 1643, RFC 1757, RFC 1907, RFC 2011, RFC 2012, RFC 2013, RFC 2233, RFC
2618, RFC 2665, RFC 2666, RFC 2674, RFC 2737, RFC 2819, RFC 2863, RFC 1157, RFC
1493, RFC 1215, RFC 3416
IPv6
IPv6
IPv6 host mode
IPv6 over Ethernet
IPv6/IPv4 Dual Stack
IPv6 neighbor and router discovery (ND)
IPv6 stateless address auto-configuration
Path Maximum Transmission Unit (MTU) discovery
Duplicate Address Detection (DAD)
ICMP version 6
IPv6 ACL
Drop or rate limit IPv6 packets in hardware
IPv6 QoS
Prioritize IPv6 packets in hardware
Multicast Listener Discovery (MLD v1/2) Snooping
Deliver IPv6 multicast packets only to the required receivers
IPv6 applications
Web/SSL, Telnet server/SSH, DHCP Client, DHCP Autoconfig, Cisco Discovery Protocol (CDP), Link Layer Discovery Protocol (LLDP)
IPv6 Requests for Comments (RFCs) supported
RFC 4443 (which obsoletes RFC2463) - ICMP version 6
RFC 4291 (which obsoletes RFC 3513) - IPv6 address architecture
RFC 4291 - IPv6 addressing architecture
RFC 2460 - IPv6 specification
RFC 4861 (which obsoletes RFC 2461) - Neighbor discovery for IPv6
RFC 4862 (which obsoletes RFC 2462) - IPv6 stateless address auto-configuration
RFC 1981 - Path MTU discovery
RFC 4007 - IPv6 scoped address architecture
RFC 3484 - Default address selection mechanism
Management

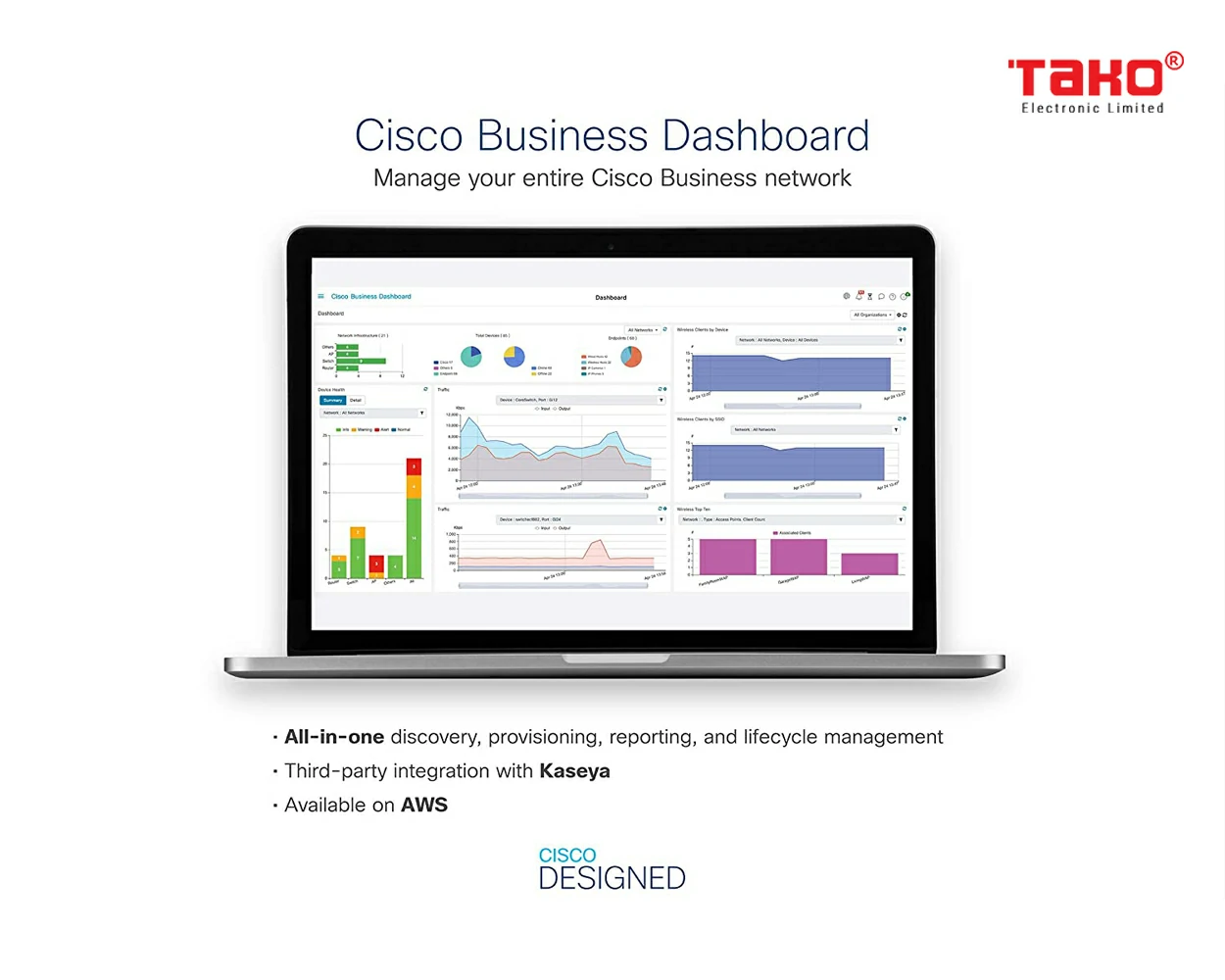

Cisco Business Dashboard
Support direct management with Cisco Business Dashboard and mobile app. Eliminates the need to set up a separate hardware or virtual machine for the Cisco Business Dashboard Probe on site.
Cisco Business mobile app
Mobile app for Cisco Business Switch and Wireless products. Helps to set up a local network in minutes and provide easy management at your fingertips.
Cisco Network Plug and Play (PnP) agent
The Cisco Network Plug and Play solution provides a simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or for provisioning updates to an existing network. The solution provides a unified approach to provision Cisco routers, switches, and wireless devices with a zero touch deployment experience.
Supports Cisco PnP Connect
Web user interface
Built-in switch configuration utility for easy browser-based device configuration (HTTP/HTTPS). Supports configuration, system dashboard, system maintenance, and monitoring
Text-editable config files
Config files can be edited with a text editor and downloaded to another switch, facilitating easier mass deployment
Command-line interface
Scriptable CLI; a full CLI is supported. User privilege levels 1 and 15 are supported for the CLI
SNMP
Simple Management Network Protocol (SNMP) versions 1, 2c, and 3 with support for traps, and SNMP version 3 User-based Security Model (USM)
Standard Management Information Bases (MIBs)
MIB-II (RFC1213)
IF-MIB (RFC2863)
Bridge-MIB (RFC4188)
Bridge-MIB-Extension (RFC2674)
RMON (RFC2819)
Etherlike MIB (RFC3635)
Radius Client MIB (RFC2618)
Entity MIB (RFC2737)
POWER-ETHERNET-MIB (RFC3621)
Syslog MIB (RFC3164)
Generic Traps MIB (RFC1215)
SNMP-COMMUNITY-MIB
SNMP-MIB
LLDP-MIB
LLDP-EXT-MED-MIB
IEEE8023-LAG-MIB
CISCO-PORT-SECURITY-MIB
CISCO-ENVMON-MIB
CISCO-CDP-MIB
CISCO-CONFIG-COPY-MIB
Remote Monitoring (RMON)
Embedded RMON software agent supports 4 RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis
IPv4 and IPv6 dual stack
Coexistence of both protocol stacks to ease migration
Port mirroring
Traffic on a port or VLAN can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to 8 source ports can be mirrored to one destination port. Four sessions are supported.
Firmware upgrade
● Web browser upgrade (HTTP/HTTPS) and Trivial File Transfer Protocol (TFTP)● Dual images for resilient firmware upgradesDHCP (Option 12, 66, 67, 82, 129, and 150)
DHCP options facilitate tighter control from a central point (DHCP server) to obtain IP address, auto-configuration (with configuration file download), DHCP relay, and hostname
Time synchronization
Simple Network Time Protocol (SNTP)
Login banner
Configurable multiple banners for web as well as CLI
Other management
HTTP/HTTPS; TFTP upgrade; DHCP client; Bootstrap Protocol (BOOTP); cable diagnostics; ping; traceroute; syslog
Discovery
Bonjour
The switch advertises itself using the Bonjour protocol
Link Layer Discovery Protocol (LLDP) (802.1ab) with LLDP-MED Extensions
LLDP allows the switch to advertise its identification, configuration, and capabilities to neighboring devices that store the data in a MIB. LLDP-MED is an enhancement to LLDP that adds the extensions needed for IP phones.
Cisco Discovery Protocol
The switch advertises itself using the Cisco Discovery Protocol. Displays brief information for connected Cisco network devices, IP phones, and wireless access points
Power efficiency
EEE compliance (802.3az)
Support 802.3az Energy Efficient Ethernet on all ports; substantially reduce the power consumption when link bandwidth is not at full utilization
Energy Detect
Automatically turns power off on Gigabit Ethernet and 10/100 RJ-45 ports when detecting a link down
Active mode is resumed without loss of any packets when the switch detects the link up
Disable port LEDs
LEDs can be manually turned off to save on energy.
Time-based PoE
PoE power can be on or off based on user-defined schedule to save energy.
Time-based port operation
Link up or down based on user-defined schedule (when the port is administratively up).

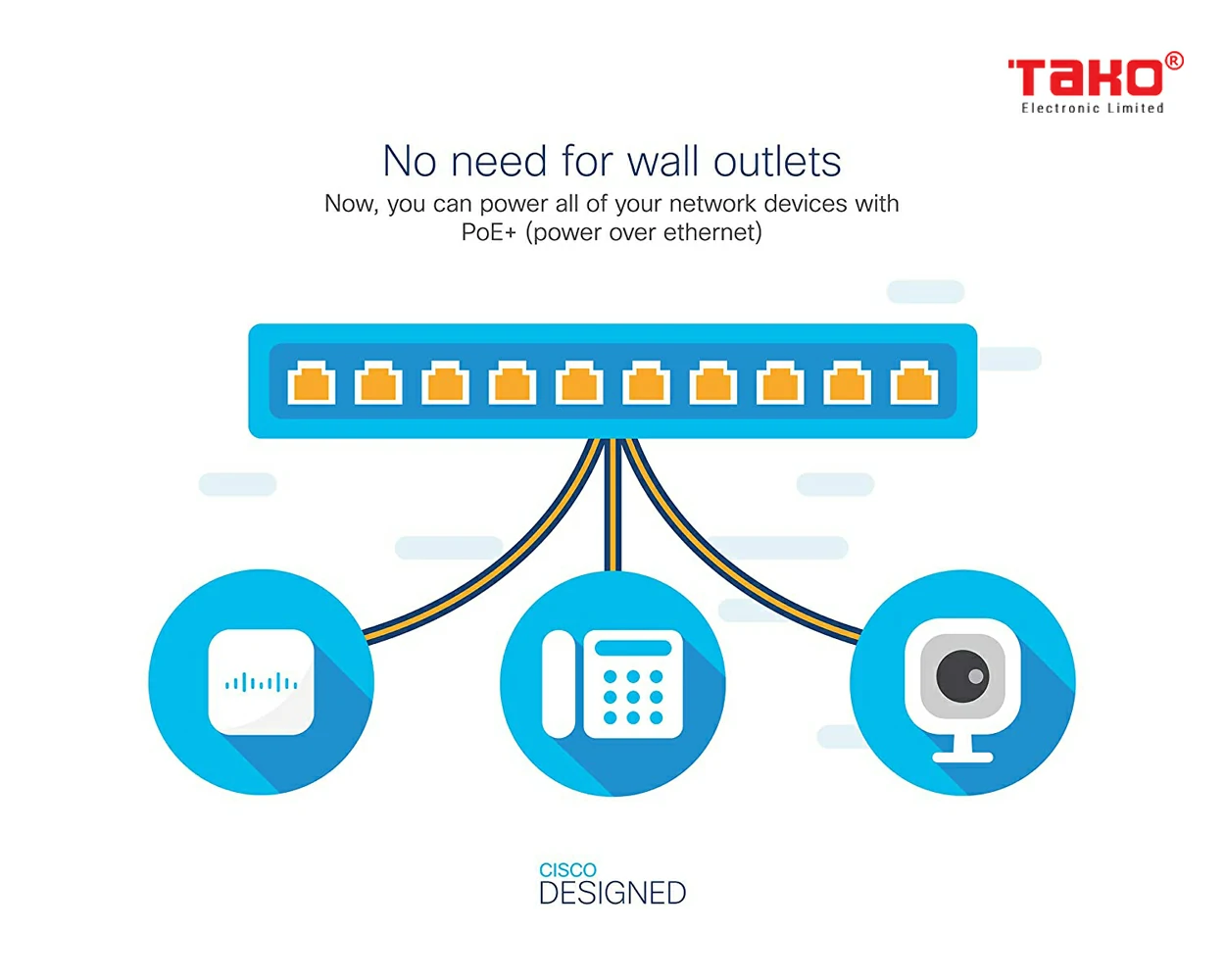

Power over Ethernet
802.3af PoE or 802.3at PoE+ delivered over any of the RJ-45 network ports within the listed power budgets
Switches support 802.3af, 802.3at, and Cisco pre-standard (legacy) PoE with maximum power of 30 W per port.
This applies to the following PoE-enabled models; the maximum number of ports providing PoE power simultaneously is determined by the total PoE budget for the switch listed as below:
Model Name
PoE Power Budget
Number of Ports That Support PoE
CBS220-8P-E-2G
65 W
8
CBS220-8FP-E-2G
130 W
8
CBS220-16P-2G
130 W
16
CBS220-24P-4G
195 W
24
CBS220-24FP-4G
382 W
24
CBS220-48P-4G
382W
48
CBS220-24P-4X
195 W
24
CBS220-24FP-4X
382 W
24
CBS220-48P-4X
382W
48
CBS220-48FP-4X
740W
48
Pre-standard PoE
Support Cisco Pre-Standard PoE
Intelligent PoE power management
Support the granular power negotiation with CDP/LLDP communication with PD devices after IEEE classification
Hardware
Buttons
Reset button
Cabling type
Unshielded Twisted Pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX; UTP Category 5
Ethernet or better for 1000BASE-T
LEDs
System, Link/Act, Speed
Flash
64 MB
CPU memory
256 MB
Ports
Model name
Total system ports
RJ-45 ports
Uplink ports
CBS220-8T-E-2G
10 Gigabit Ethernet
8 Gigabit Ethernet
2 Gigabit Ethernet Small form-factor pluggable (SFP)
CBS220-8P-E-2G
10 Gigabit Ethernet
8 Gigabit Ethernet
2 Gigabit Ethernet SFP
CBS220-8FP-E-2G
10 Gigabit Ethernet
8 Gigabit Ethernet
2 Gigabit Ethernet SFP
CBS220-16T-2G
18 Gigabit Ethernet
16 Gigabit Ethernet
2 Gigabit Ethernet SFP
CBS220-16P-2G
18 Gigabit Ethernet
16 Gigabit Ethernet
2 Gigabit Ethernet SFP
CBS220-24T-4G
28 Gigabit Ethernet
24 Gigabit Ethernet
4 Gigabit Ethernet SFP
CBS220-24P-4G
28 Gigabit Ethernet
24 Gigabit Ethernet
4 Gigabit Ethernet SFP
CBS220-24FP-4G
28 Gigabit Ethernet
24 Gigabit Ethernet
4 Gigabit Ethernet SFP
CBS220-48T-4G
52 Gigabit Ethernet
48 Gigabit Ethernet
4 Gigabit Ethernet SFP
CBS220-48P-4G
52 Gigabit Ethernet
48 Gigabit Ethernet
4 Gigabit Ethernet SFP
CBS220-24T-4X
24 Gigabit Ethernet +
4 10 Gigabit Ethernet24 Gigabit Ethernet
4 10G SFP+
CBS220-24P-4X
24 Gigabit Ethernet +
4 10 Gigabit Ethernet24 Gigabit Ethernet
4 10G SFP+
CBS220-24FP-4X
24 Gigabit Ethernet +
4 10 Gigabit Ethernet24 Gigabit Ethernet
4 10G SFP+
CBS220-48T-4X
48 Gigabit Ethernet +
4 10 Gigabit Ethernet48 Gigabit Ethernet
4 10G SFP+
CBS220-48P-4X
48 Gigabit Ethernet +
4 10 Gigabit Ethernet48 Gigabit Ethernet
4 10G SFP+
CBS220-48FP-4X
48 Gigabit Ethernet +
4 10 Gigabit Ethernet48 Gigabit Ethernet
4 10G SFP+
Packet Buffer
All numbers are aggregate across all ports as the buffers are dynamically shared.
Model name
Packet buffer
CBS220-8T-E-2G
4.1 Mb
CBS220-8P-E-2G
4.1 Mb
CBS220-8FP-E-2G
4.1 Mb
CBS220-16T-2G
4.1 Mb
CBS220-16P-2G
4.1 Mb
CBS220-24T-4G
4.1 Mb
CBS220-24P-4G
4.1 Mb
CBS220-24FP-4G
4.1 Mb
CBS220-48T-4G
12 Mb
CBS220-48P-4G
12 Mb
CBS220-24T-4X
12 Mb
CBS220-24P-4X
12 Mb
CBS220-24FP-4X
12 Mb
CBS220-48T-4X
16 Mb
CBS220-48P-4X
16 Mb
CBS220-48FP-4X
16 Mb
Supported SFP Modules
SKU
Media
Speed
Maximum distance
MGBSX1
Multimode fiber
1000 Mbps
500 m
MGBLX1
Single-mode fiber
1000 Mbps
10 km
MGBLH1
Single-mode fiber
1000 Mbps
40 km
MGBT1
UTP Category 5
1000 Mbps
100 m
GLC-SX-MMD
Multimode fiber
1000 Mbps
550 m
GLC-LH-SMD
Single-mode fiber
1000 Mbps
10 km
GLC-BX-U
Single-mode fiber
1000 Mbps
10 km
GLC-BX-D
Single-mode fiber
1000 Mbps
10 km
GLC-TE
UTP cat 5e
1000 Mbps
100 m
SFP-H10GB-CU1M
Copper coax
10 Gig
1 m
SFP-10G-SR
Multimode fiber
10 Gig
26 m – 400 m
SFP-10G-LR
Single-mode fiber
10 Gig
10 km
SFP-10G-SR-S
Multimode fiber
10 Gig
26 m – 400 m
SFP-10G-LR-S
Single-mode fiber
10 Gig
10 km
Environmental
Unit dimensions
(W x D x H)Model name
Unit dimensions
CBS220-8T-E-2G
279 x 170 x 44 mm (11.0 x 6.7 x 1.7 in)
CBS220-8P-E-2G
279 x 170 x 44 mm (11.0 x 6.7 x 1.7 in)
CBS220-8FP-E-2G
279 x 170 x 44 mm (11.0 x 6.7 x 1.7 in)
CBS220-16T-2G
440 x 203 x 44 mm (17.3 x 8.0 x 1.7 in)
CBS220-16P-2G
440 x 203 x 44 mm (17.3 x 8.0 x 1.7 in)
CBS220-24T-4G
440 x 203 x 44 mm (17.3 x 8.0 x 1.7 in)
CBS220-24P-4G
440 x 257 x 44 mm (17.3 x 10.1 x 1.7 in)
CBS220-24FP-4G
440 x 257 x 44 mm (17.3 x 10.1 x 1.7 in)
CBS220-48T-4G
440 x 257 x 44 mm (17.3 x 10.1 x 1.7 in)
CBS220-48P-4G
440 x 257 x 44 mm (17.3 x 10.1 x 1.7 in)
CBS220-24T-4X
440 x 203 x 44 mm (17.3 x 8.0 x 1.7 in)
CBS220-24P-4X
440 x 257 x 44 mm (17.3 x 10.1 x 1.7 in)
CBS220-24FP-4X
440 x 257 x 44 mm (17.3 x 10.1 x 1.7 in)
CBS220-48T-4X
440 x 257 x 44 mm (17.3 x 10.1 x 1.7 in)
CBS220-48P-4X
440 x 350 x 44 mm (17.3 x 13.8 x 1.7 in)
CBS220-48FP-4X
440 x 350 x 44 mm (17.3 x 13.8 x 1.7 in)
Unit weight
Model name
Unit weight
CBS220-8T-E-2G
1.16 kg (2.56 lb)
CBS220-8P-E-2G
1.18 kg (2.60 lb)
CBS220-8FP-E-2G
1.18 kg (2.60 lb)
CBS220-16T-2G
2.48 kg (5.47 lb)
CBS220-16P-2G
3.03 kg (6.68 lb)
CBS220-24T-4G
2.75 kg (6.06 lb)
CBS220-24P-4G
4.07 kg (8.97 lb)
CBS220-24FP-4G
4.10 kg (9.04 lb)
CBS220-48T-4G
3.18 kg (7.01 lb)
CBS220-48P-4G
5.29 kg (11.66 lb)
CBS220-24T-4X
2.69 kg (5.93 lb)
CBS220-24P-4X
4.03 kg (8.88 lb)
CBS220-24FP-4X
4.03 kg (8.88 lb)
CBS220-48T-4X
3.54 kg (7.80 lb)
CBS220-48P-4X
5.36 kg (11.82 lb)
CBS220-48FP-4X
5.65 kg (12.46 lb)
Power
100-240 V, 50-60 Hz, Internal: CBS220-16T-2G, CBS220-16P-2G, CBS220-24T-4G, CBS220-24P-4G, CBS220-24FP-4G, CBS220-48T-4G, CBS220-48P-4G, CBS220-24T-4X, CBS220-24P-4X, CBS220-24FP-4X, CBS220-48T-4X, CBS220-48P-4X, CBS220-48FP-4X
100-240 V, 50-60 Hz, External: CBS220-8T-E-2G, CBS220-8P-E-2G, CBS220-8FP-E-2G
Certifications
UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, C-tick
Operating temperature
0-50° C
Storage temperature
–20° C to +70° C
Operating humidity
10% to 90%, relative, noncondensing
Storage humidity
10% to 90%, relative, noncondensing
Power Consumption
Model name
System power consumption
Power consumption (with PoE)
Heat dissipation (BTU/hr)
CBS220-8T-E-2G
110V=5.7W
220V=5.9W
N/A
20.13
CBS220-8P-E-2G
110V=7.8W
220V=8.2W
110V=81.2W
220V=81.6W
278.43
CBS220-8FP-E-2G
110V=9.1W
220V=9.1W
110V=151.4W
220V=148.9W
516.6
CBS220-16T-2G
110V=11.1W
220V=11.4W
N/A
38.9
CBS220-16P-2G
110V=16.8W
220V=18.3W
110V=160.2W
220V=159.4W
546.63
CBS220-24T-4G
110V=18.0W
220V=18.0W
N/A
61.42
CBS220-24P-4G
110V=30.2W
220V=30.4W
110V=244.3W
220V=240.3W
833.59
CBS220-24FP-4G
110V=30.8W
220V=30.8W
110V=459W
220V=445W
1,566.17
CBS220-48T-4G
110V=36.5W
220V=36.1W
N/A
124.54
CBS220-48P-4G
110V=52.6W
220V=53.0W
110V=478.2W
220V=464W
1,631.69
CBS220-24T-4X
110V=23.2W
220V=23.6W
N/A
80.5
CBS220-24P-4X
110V=36.9W
220V=37.6W
110V=248.7W
220V=244.4W
848.6
CBS220-24FP-4X
110V=39.6W
220V=39.6W
110V=470W
220V=456.4W
1,603.71
CBS220-48T-4X
110V=41.0W
220V=41.2W
N/A
140.58
CBS220-48P-4X
110V=54.8W
220V=55.1W
110V=482W
220V=468W
1,644.65
CBS220-48FP-4X
110V=65.7W
220V=64.4W
110V=900W
220V=875.3W
3,070.92
Acounstic Noise and Mean Time Between Failure (MTBF)
Model name
Fan (number)
Acoustic noise
MTBF @ 25°C (hours)
CBS220-8T-E-2G
Fanless
N/A
1,489,560
CBS220-8P-E-2G
Fanless
N/A
315,326
CBS220-8FP-E-2G
Fanless
N/A
660,457
CBS220-16T-2G
Fanless
N/A
1,062,289
CBS220-16P-2G
Fanless
N/A
611,476
CBS220-24T-4G
Fanless
N/A
1,049,371
CBS220-24P-4G
2
25°C: 42.7 dB
587,473
CBS220-24FP-4G
2
25°C: 43.2 dB
588,411
CBS220-48T-4G
1
25°C: 35.0 dB
727,181
CBS220-48P-4G
1
25°C: 34.8 dB
452,351
CBS220-24T-4X
1
25°C: 34 dB
1,372,359
CBS220-24P-4X
2
25°C: 42.7 dB
617,232
CBS220-24FP-4X
2
25°C: 44.2 dB
588,411
CBS220-48T-4X
1
25°C: 32.6 dB
420,827
CBS220-48P-4X
1
25°C: 35.1 dB
265,589
CBS220-48FP-4X
1
25°C: 37.7 dB
289,406
Package contents
Package contents
● Cisco Business 220 Series Ethernet switch● Power cord or adaptor● Mounting kit● Quick start guide
_11zon2024216144641.webp)
