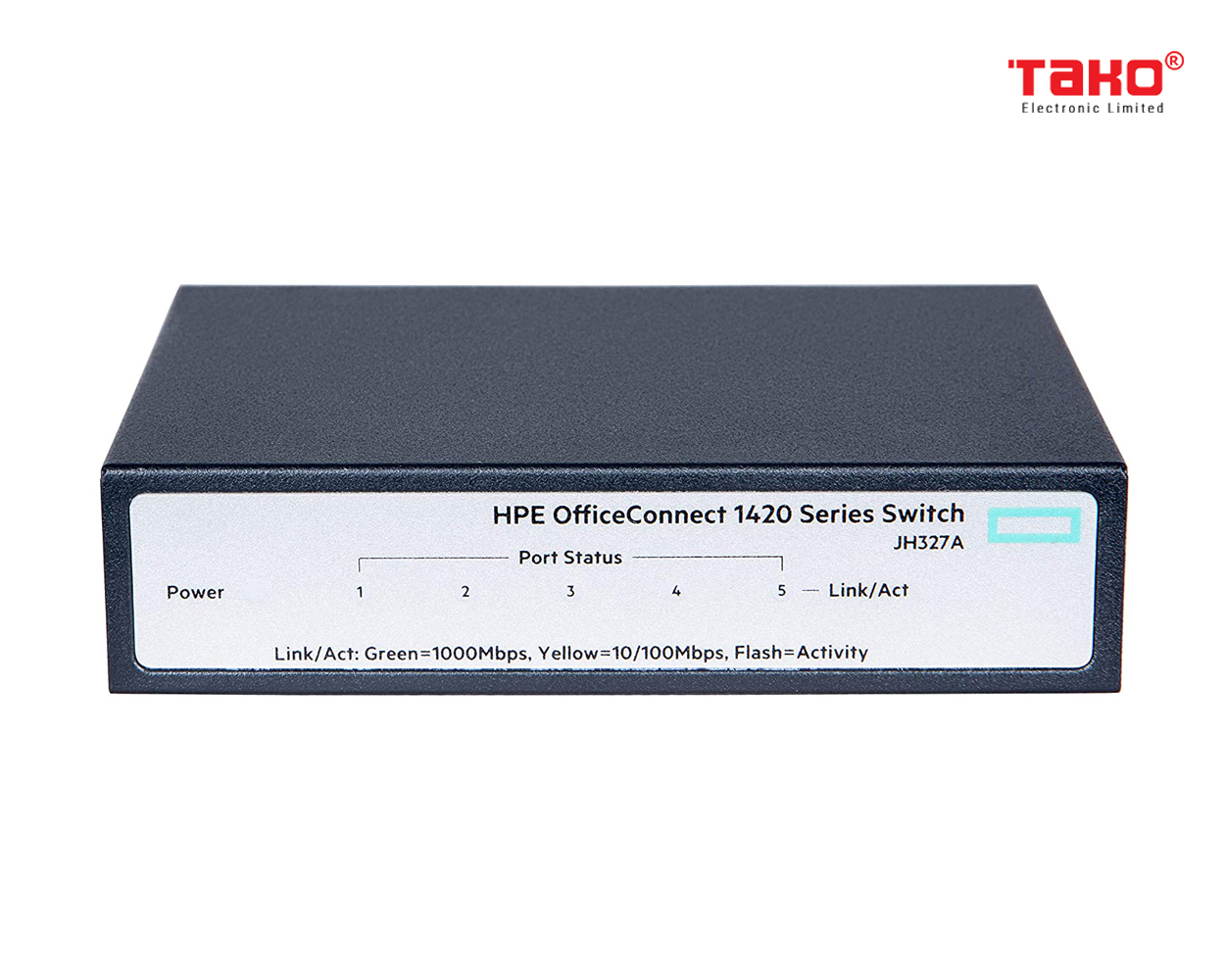

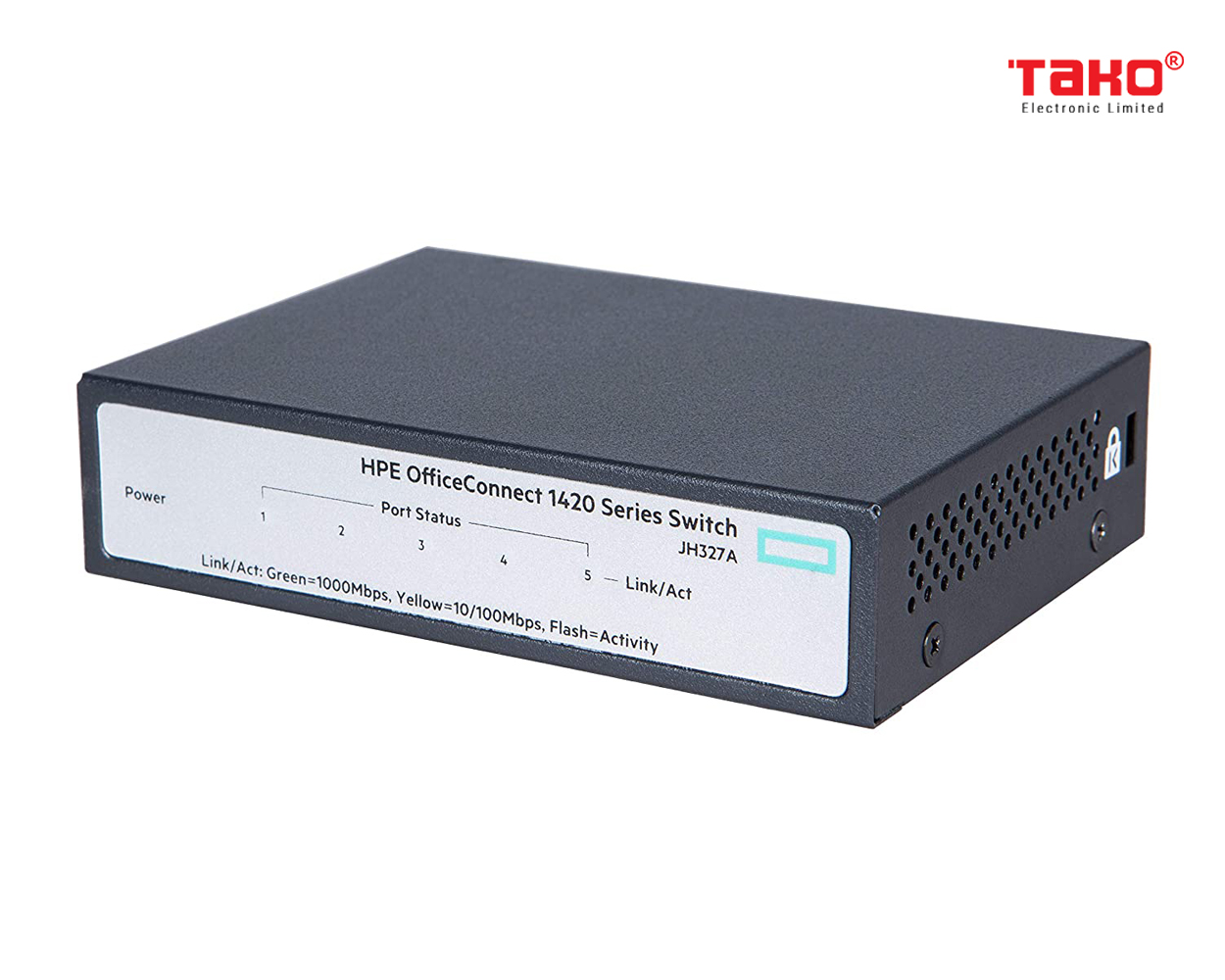

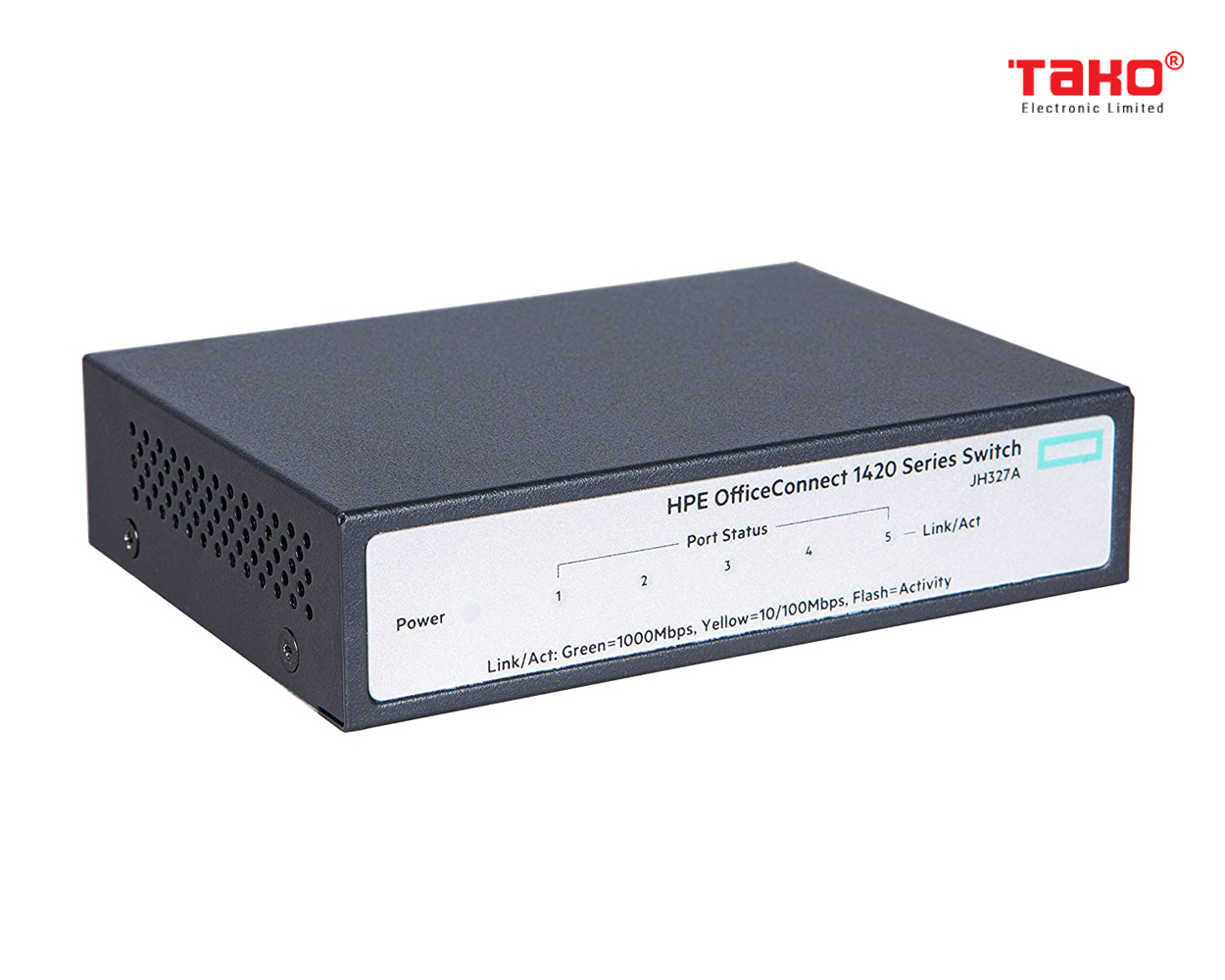

HPE OfficeConnect 1420 5-Port Gigabit Ethernet Unmanaged Switch-5 x GE 10/100/1000 (JH327A#ABA)


	JH327A#ABA	JH328A#ABA	JH329A#ABA	JH330A#ABA
	5-Port Non PoE	5-Port PoE 32 Watt	8-Port Non PoE	8-Port PoE 64 Watt
# Gigabit Ethernet Ports	5 x 1G	5 x 1G	8 x 1G	8 x 1G
# PoE Ports		4 PoE / PoE+		8 PoE / PoE+
PoE Budget		32 Watt		64 Watt
Management	N/A - unmanaged	N/A - unmanaged	N/A - unmanaged	N/A - unmanaged
Switch Layer	Layer 2	Layer 2	Layer 2	Layer 2
Notable Features	Small form enclosure -- Silent operation -- Energy Efficient Ethernet	Small form enclosure -- Silent operation -- Energy Efficient Ethernet	Small form enclosure -- Silent operation -- Energy Efficient Ethernet	Small form enclosure -- Silent operation -- Energy Efficient Ethernet
Orientation	LEDs to front -- Ports to rear	LEDs to front -- Ports to rear	LEDs to front -- Ports to rear	LEDs to front -- Ports to rear
Mounting	desktop	desktop	desktop	desktop


	JH016A#ABA	JG708B#ABA	JH019A#ABA	JH017A#ABA	JH018A#ABA
	16-Port Non PoE	24-Port Non PoE	24-Port PoE 124 Watt	24-Port Non PoE	24-Port Non PoE
# Gigabit Ethernet Ports	16 x 1G	24x 1G	24x 1G	24x 1G	24x 1G
# SFP Uplink Slots				2 x SFP
# SFP+ Uplink Slots					2 x SFP+
# PoE Ports			12 PoE / PoE+
Management	N/A - unmanaged	N/A - unmanaged	N/A - unmanaged	N/A - unmanaged	N/A - unmanaged
Switch Layer	Layer 2	Layer 2	Layer 2	Layer 2	Layer 2
Notable Features	Small form enclosure -- Silent operation -- Energy Efficient Ethernet	Rack width enclosure -- Silent operation -- Energy Efficient Ethernet	Rack width enclosure -- Silent operation -- Energy Efficient Ethernet	Rack width enclosure -- Silent operation -- Energy Efficient Ethernet	Rack width enclosure -- Silent operation -- Energy Efficient Ethernet
Orientation	LEDs and Ports to Front	LEDs and Ports to Front	LEDs and Ports to Front	LEDs and Ports to Front	LEDs and Ports to Front
Mounting	desktop -- flat surface -- rackmount	desktop -- flat surface -- rackmount	desktop -- flat surface -- rackmount	desktop -- flat surface -- rackmount	desktop -- flat surface -- rackmount


	1405 Series	1420 Series	1820 Series	1920S Series	1930 Series	1950 Series
Purpose	Small port desktop switches for offices, home, conference rooms	Go-to series for a basic small business network. Unmanaged plug-and-play	Basic smart managed switch for networks requiring VLAN security	Go-to full featured GE web managed switching	Go-to full featured GE with 10G cloud or web managed switching	Advanced full featured web managed switching for a 10G centric network
Branding	HPE OfficeConnect	HPE OfficeConnect	HPE OfficeConnect	HPE OfficeConnect	Aruba Instant On	HPE OfficeConnect
Management	Unmanaged	Unmanaged	Web	Web	Web / Cloud	Web
Layer 2 / Layer 3	Layer 2	Layer 2	Layer 2	Layer 3 (L2+)	Layer 3 (L2+)	Layer 3 (L2+)

JH327A Specifications
Type	HPE Officeconnect 1420 5G Switch

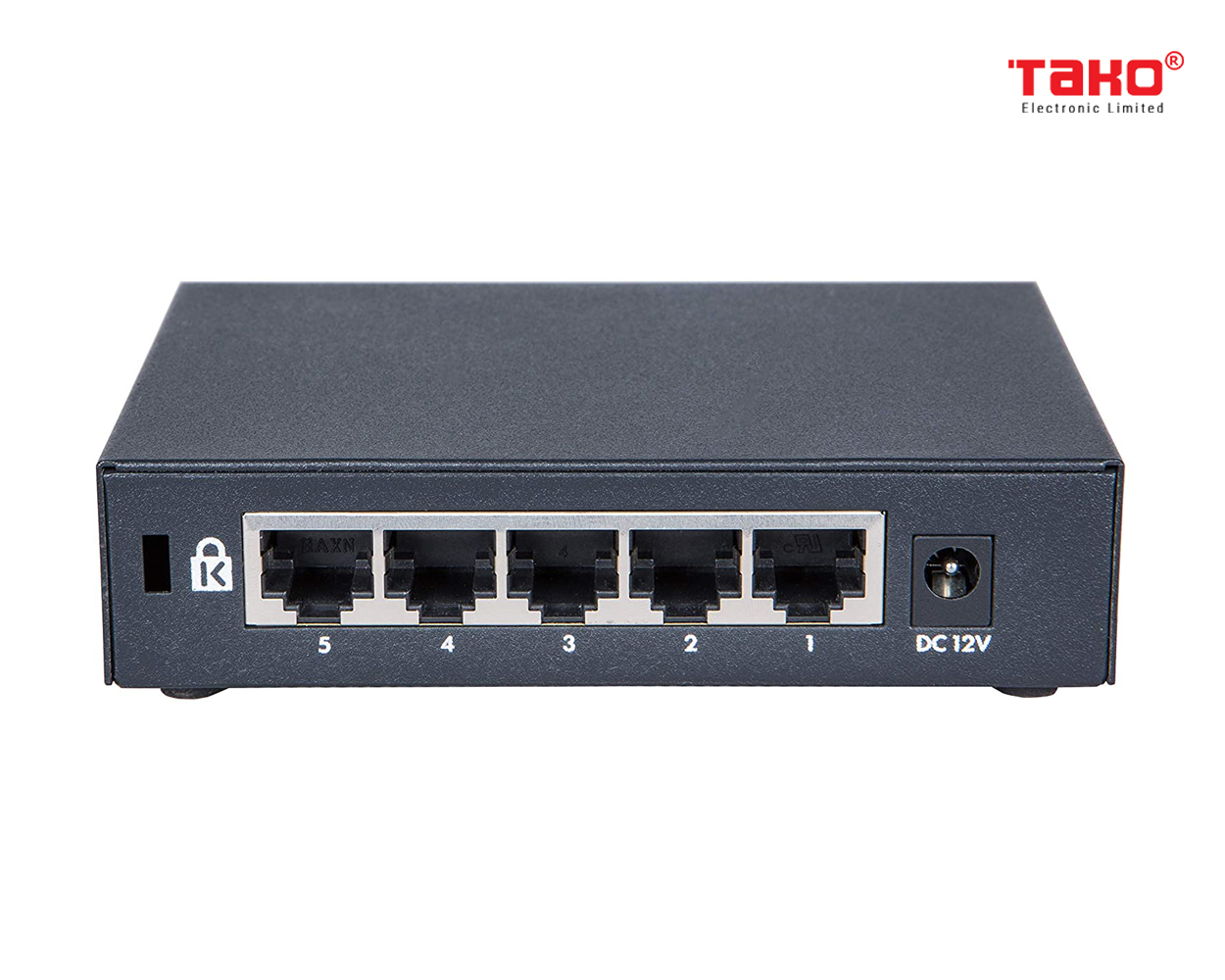

I/O ports and slots	5 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 type 10BASE-T, IEEE 802.3u type 100BASE-TX, IEEE 802.3ab type 1000BASE-T) Media type: Auto-MDIX Duplex: 10BASE-T/100BASE-TX: half or full 1000BASE-T: full only
Memory and processor	Packet buffer size: 1Mb
Mounting and enclosure	Desktop (rear port)
100Mb latency	< 3 μs
1000Mb latency	< 2.6 μs
10 Gb/s Latency	N/A
Throughput	up to 7.4 Mp/s
Switching capacity	10Gb/s
MAC address table size	2048 entries
Reliability: MTBF (years)	N/A
Dimensions	2.69 x 11.48 x 8.08cm (1.06 x 4.52 x 3.18 in)
Weight	0.3 kg (0.66 lb)
Frequency	50/60 Hz
Maximum heat dissipation	N/A
Voltage	100 - 240 V ac (rated)
Current	N/A
Maximum power rating	3.0 W4
PoE power	N/A
Operating temperature	0°C to 40°C(32°F to 104°F)
Operating relative humidity	5% to 95%, non condensing
Non operating/Storage temperature	-40°C to 70°C (-40°F to 158°F)
Non operating/Storage relative humidity	5% to 95%, non condensing
Altitude	N/A
Acoustic	Fanless
Safety	UL 60950 IEC 60950-1 EN 60950-1 CAN/CSA-C22.2 No. 60950-1-03
Emissions	FCC Rules Part 15, Subpart B Class A
Generic	EN 55022 CISPR 22
EN	EN 55024, CISPR 24
ESD	IEC 61000-4-2
Radiated	IEC 61000-4-3
EFT/Burst	IEC 61000-4-4
Surge	IEC 61000-4-5
Conducted	IEC 61000-4-6
Power frequency magnetic field	IEC 61000-4-8
Voltage dips and interruptions	IEC 61000-4-11
Harmonics	IEC 61000-3-2
Flicker	IEC 61000-3-3
