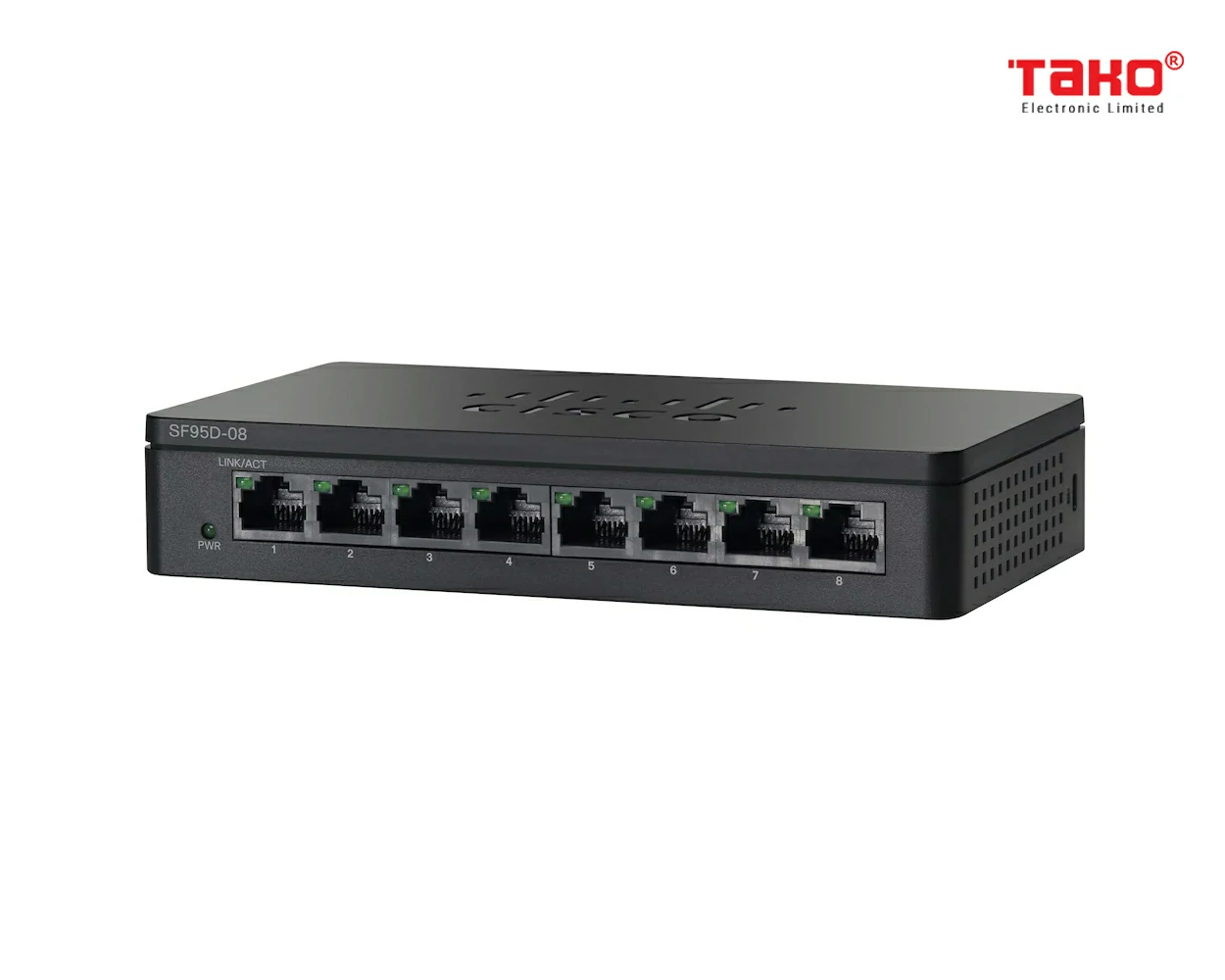

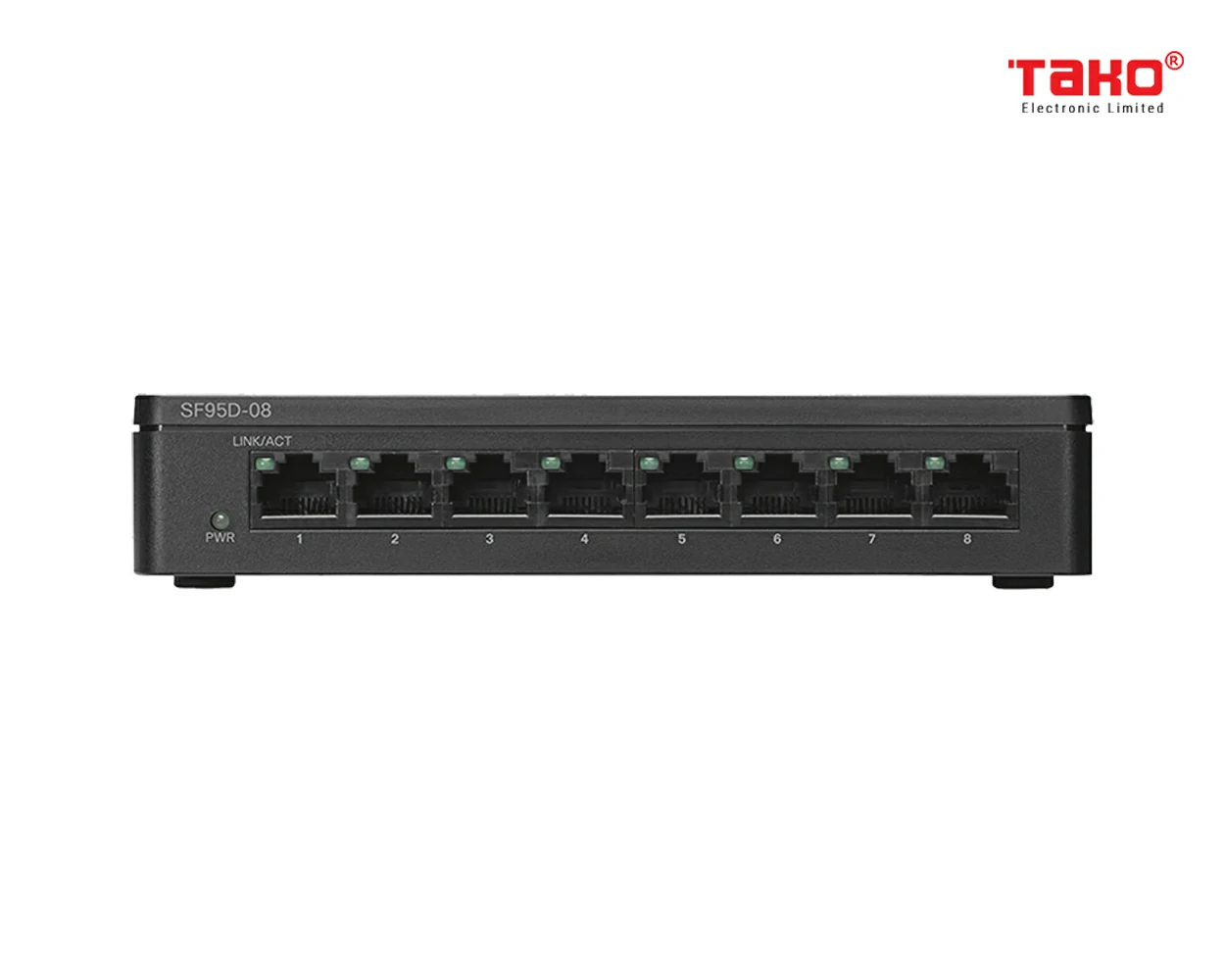

Cisco SF95D-08-IN 8-Port 10/100 Desktop Unmanaged Switch

Standards

IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet

Cabling type

Category 5e or better

LED indicators

System/PWR, link/activity, 100M^*, cable diagnostics, loop detection, gigabit,^* mini-GBIC^*

^*if present

Physical Interfaces

Ports

10/100/1000 Ethernet, power port for AC adapter or power cord

Power supply

SF95D-05, SF95D-08: DC 12V, 500mA

SF95D-16, SG95D-08, SG95D-05: DC 12V, 1.0A

SF95-24, SG95-16, SG95-24: 110-240VAC, 50-60 Hz, internal, universal

Lock slot

Slot for Kensington lock

Physical Specifications

Physical dimensions (W x D x H)

SF95D-05: 110 x 75 x 30 mm

SF95D-08: 160 x 90 x 30 mm

SF95D-16: 160 x 90 x 44 mm

SF95-24: 279 x 170 x 44 mm

SG95D-05: 110 x 75 x 30 mm

SG95D-08: 160 x 104 x 30 mm

SG95-16: 279 x 110 x 26 mm

SG95-24: 279 x 170 x 44 mm

Weight

SF95D-05: 0.11 kg

SF95D-08: 0.45 kg

SF95D-16: 0.53 kg

SF95-24: 1.18 kg

SG95D-05: 0.12 kg

SG95D-08: 0.19 kg

SG95-16: 0.75 kg

SG95-24: 1.55 kg

Ports

SF95D-05: 5 RJ-45 connectors for 10BASE-T/100BASE-TX

SF95D-08: 8 RJ-45 connectors for 10BASE-T/100BASE-TX

SF95D-16: 16 RJ-45 connectors for 10BASE-T/100BASE-TX

SF95-24: 24 RJ-45 connectors for 10BASE-T/100BASE-TX

SG95D-08: 8 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports

SG95-16: 16 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports

SG95-24: 24 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports with 2 combo mini-GBIC slots

All units: automatic Medium Dependent Interface (MDI) and MDI crossover (MDI-X); auto-negotiated port for connecting 10-, 100-, 1000-Mbps devices

Fan/fanless models

All models have no fans and are fanless

Performance

Switching capacity

SF95D-05: 1 Gbps

SF95D-08: 1.6 Gbps

SF95D-16: 3.2 Gbps

SF95-24: 4.8 Gbps

SG95D-05: 10 Gbps

SG95D-08: 16 Gbps

SG95-16: 32 Gbps

SG95-24: 48 Gbps

Forwarding capacity

Forwarding rate in million packets per second (mpps) (based on 64-byte packets):

SF95D-05: 0.74 mpps

SF95D-08: 1.4. mpps

SF95D-16: 1.4 mpps

SF95-24: 3.6 mpps

SG95D-05: 7.4 mpps

SG95D-08: 11.9 mpps

SG95-16: 23.8 mpps

SG95-24: 35.7 mpps

Capabilities

Head-Of-Line (HOL) blocking

HOL blocking prevention

Jumbo frame

9216 bytes

Quality of Service (QoS)

802.1p priority based, hardware queues, priority queuing and Weighted Round-Robin (WRR)

Loop detection

Helps discover loops in the network to avoid broadcast storms

Cable diagnostics

Quickly identify and troubleshoot network cable faults and/or shorts

Mounting and Physical Security

Mounting options

Desktop or rack mount

Physical security lock

Kensington lock slot

Environmental

Compliance/certifications

UL (UL 60950), CSA (CSA 22.2), FCC Part 15 (CFR 47) Class A, FCC Class B^{* *}select models

95 series switches are only available in Asia region excluding Japan.

110 series switches are available in other regions.

Operating temperature

32° to 104°F (0° to 40°C)

Storage temperature

-4° to 158°F (-20° to 70°C)

Operating humidity

10% to 90%, relative, noncondensing

Storage humidity

5% to 90%, relative, noncondensing

Package Contents

Minimum Requirements

Warranty

Cisco 95 Series switch

Limited lifetime
