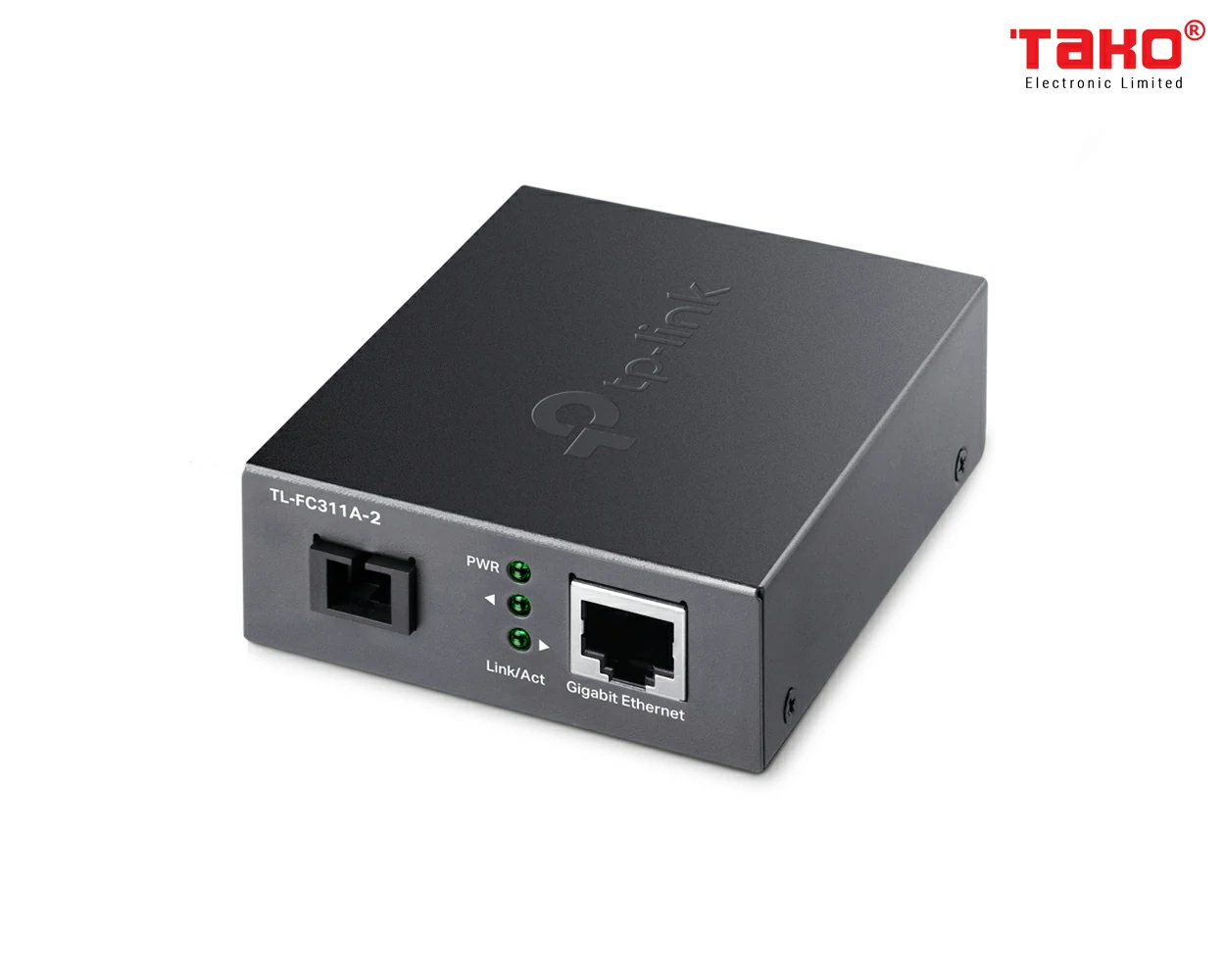

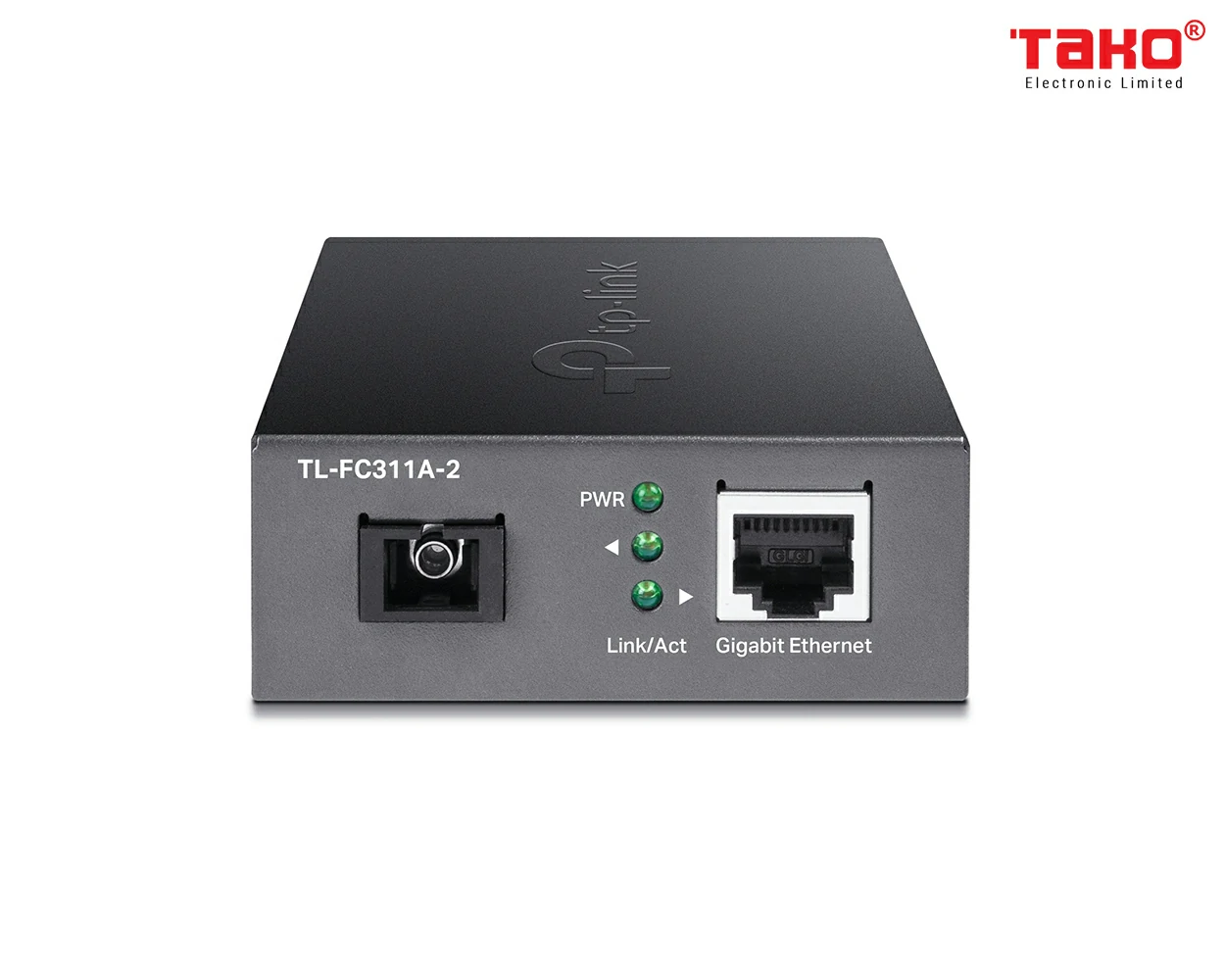

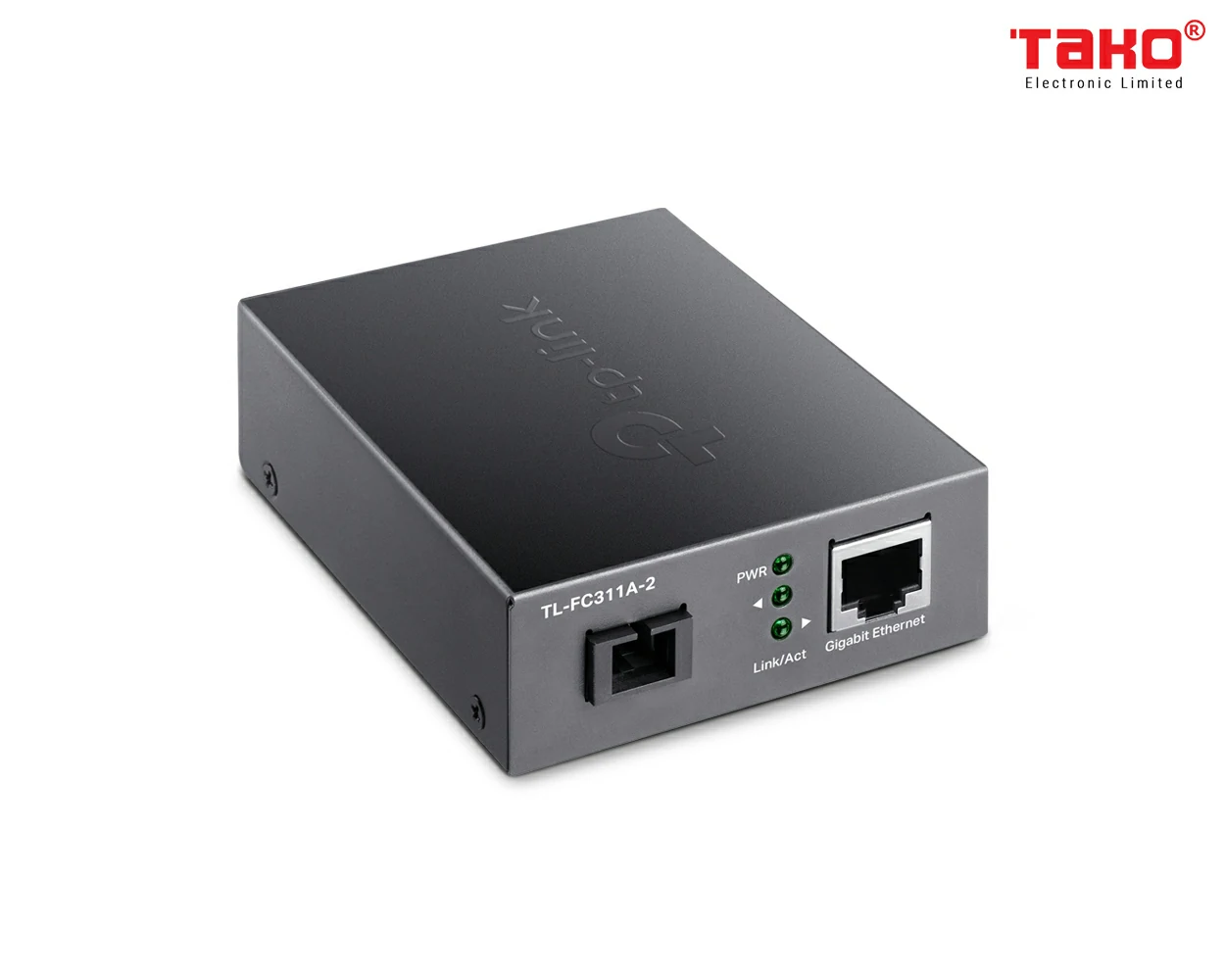

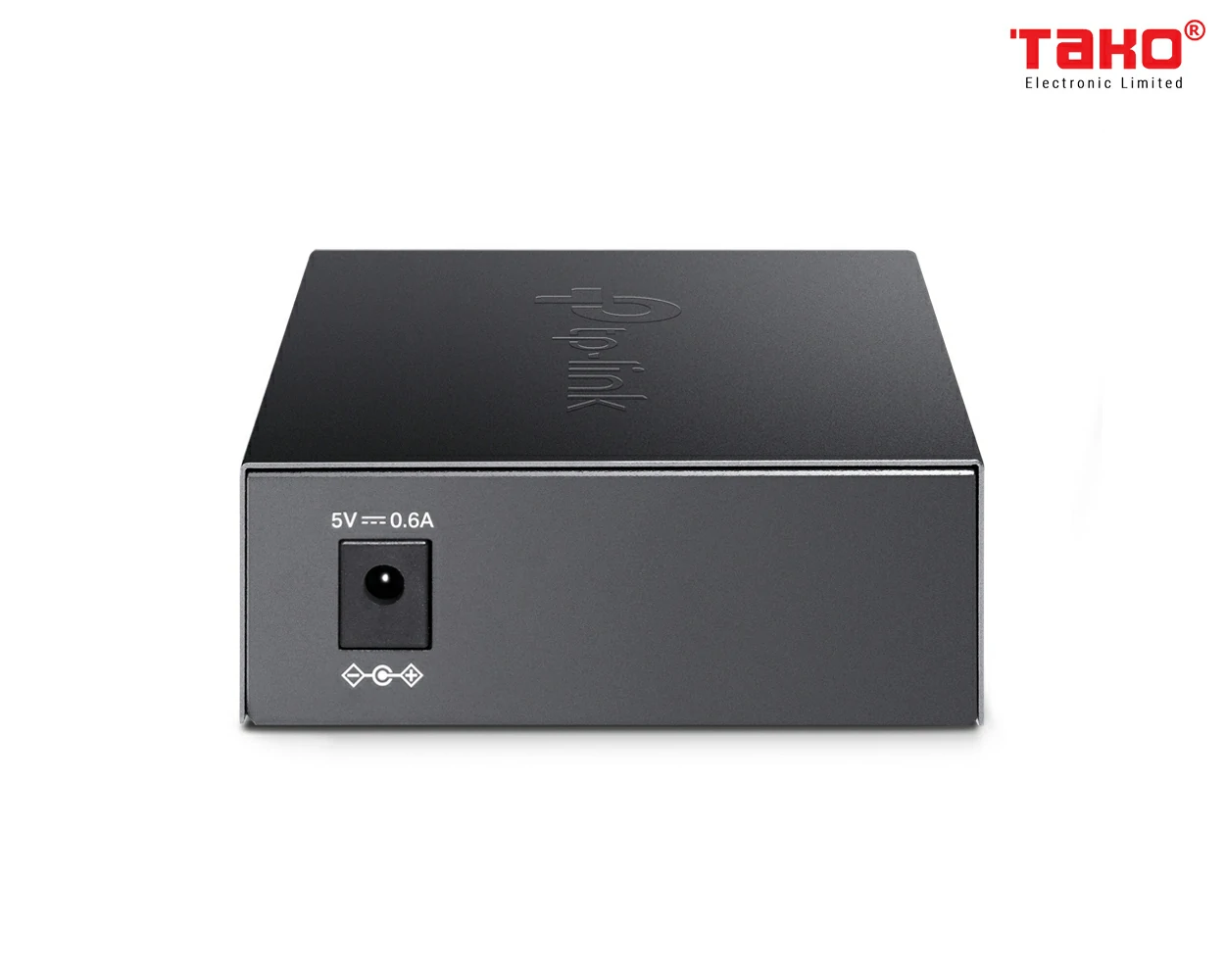

TL-FC311A-2 Gigabit WDM Media Converter
- Mã sản phẩm: TL-FC311A-2
- Xuất xứ: Trung Quốc
- Bảo hành: 60 tháng
- Kho hàng: Đặt hàng
- Cổng RJ45 tự động đàm phán 1 × 10/100 / 1000Mbps hỗ trợ Auto-MDI / MDIX
- Tự động đàm phán chế độ truyền Half-Duplex / Full-Duplex
- Áp dụng công nghệ WDM, truyền và nhận dữ liệu trên một sợi quang duy nhất
- Mở rộng khoảng cách cáp quang lên đến 2 kmMua ngay Giá tham khảo: 539,000 VNĐ
Hotline: 0888342020
-
What This Product Does
TL-FC311A-2 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.How This Product Works
TL-FC311A-2 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 2 km with only a single mode fiber, which saves half of the cable deployment cost for customers. TL-FC311A-2 transmits data at 1550 nm wavelength and receives data at 1310 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC311A-2 should send data at a wavelength of 1310 nm and receive data at a wavelength of 1550 nm. TP-Link another media converter TL-FC311B-2 is one of the products that can cooperate with TL-FC311A-2.
Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link's TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
